| Layer Supported | L3 |
| Form Factor | Rack-mountable |
| Manageable | Yes |
| Network Technology | 10/100/1000Base-T |
| Port/Expansion Slot Details | Gigabit Ethernet |
| Total Number of Network Ports | 24 |
| Brand Name | HP |
| Product Name | HP A5120 Series Switch JG245A |
| Manufacturer Part Number | JG245A |
| Product Series | A5120 EI |
| Product Model | A5120-24G EI |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | CAT 5, CAT 6 |
| Ethernet Technology | Gigabit Ethernet |
| Width | 17.32″ |
| Weight | 9.92 lb. (4.5 kg) |
| Height | 1.7″ |
| Depth | 11.8″ |
| System Requirements | UTP Category 5 cables or better, Network card for each PC or server |
| Certifications & Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.3CAMA/CD, IEEE802.3azEnergyEfficientEthernet, CE Class A, FCC Part 15 Class A, VCCI Class A, C-Tick Class A, KCC CCC, UL listed (UL 1950)/cUL, CELVD(EN60950-1), CB, KCC, CCC, RUEAC |
| Package Contents | 24-port Gigabit Ethernet Switch JG245A, Power adapter, Installation guide, Rack-mount kit, Warranty/Support information card |
| Input Voltage | 110 V AC, 220 V AC |

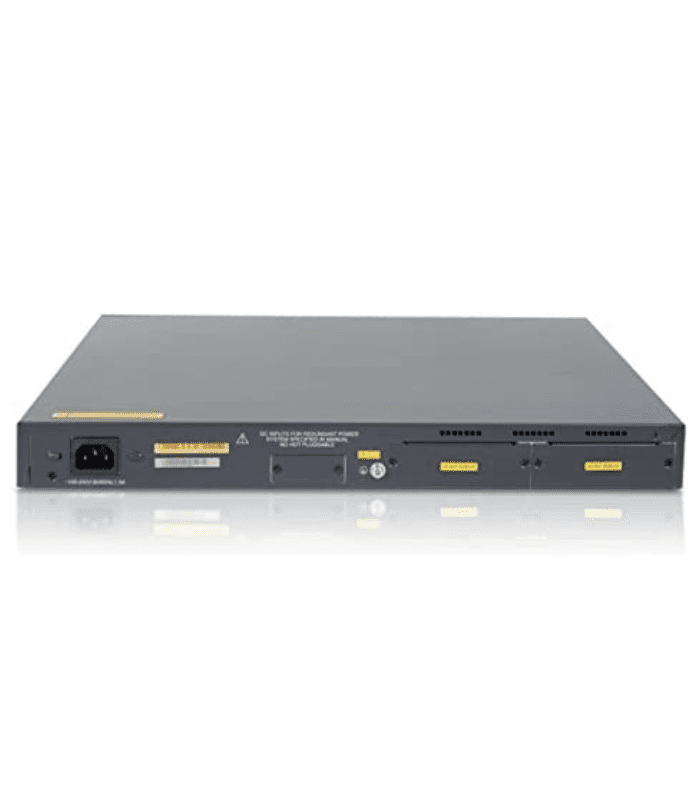

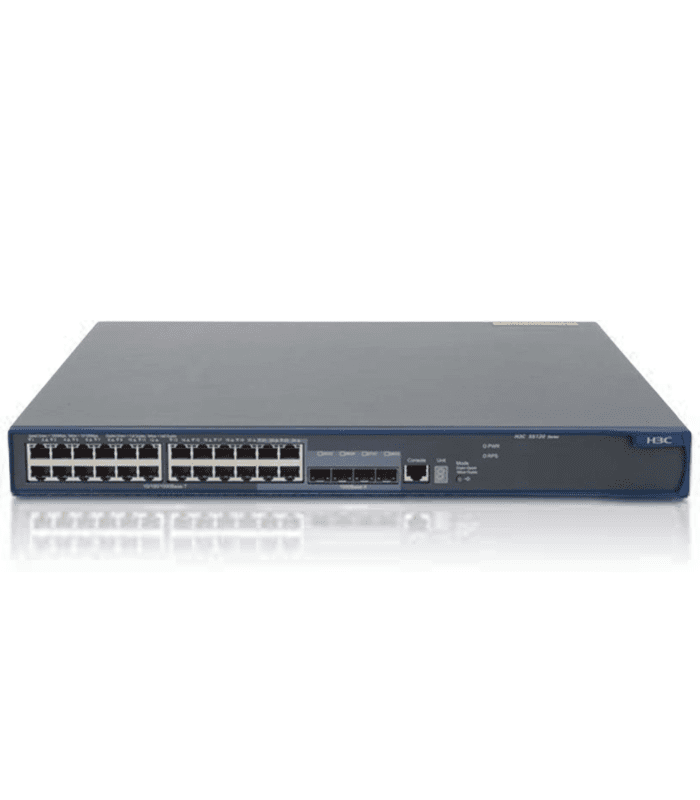

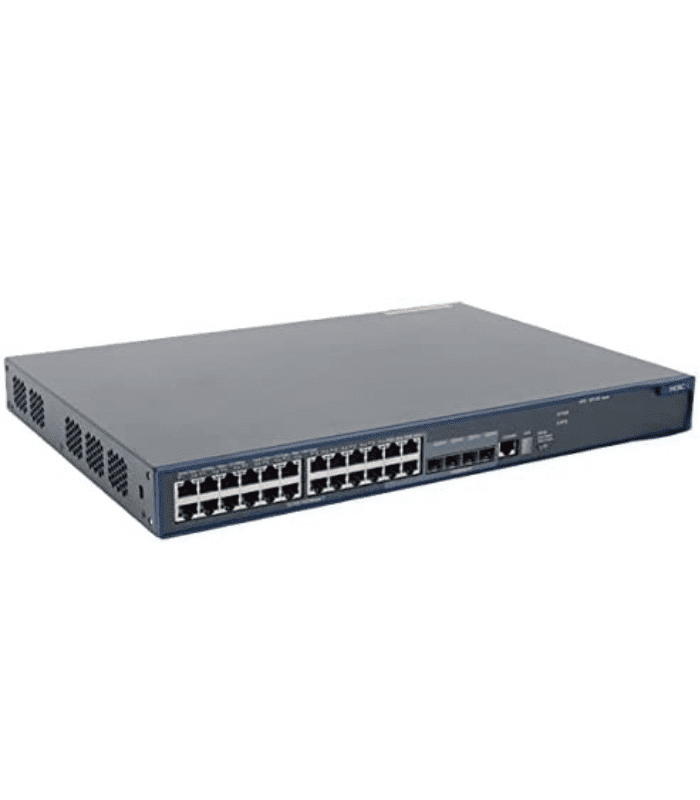

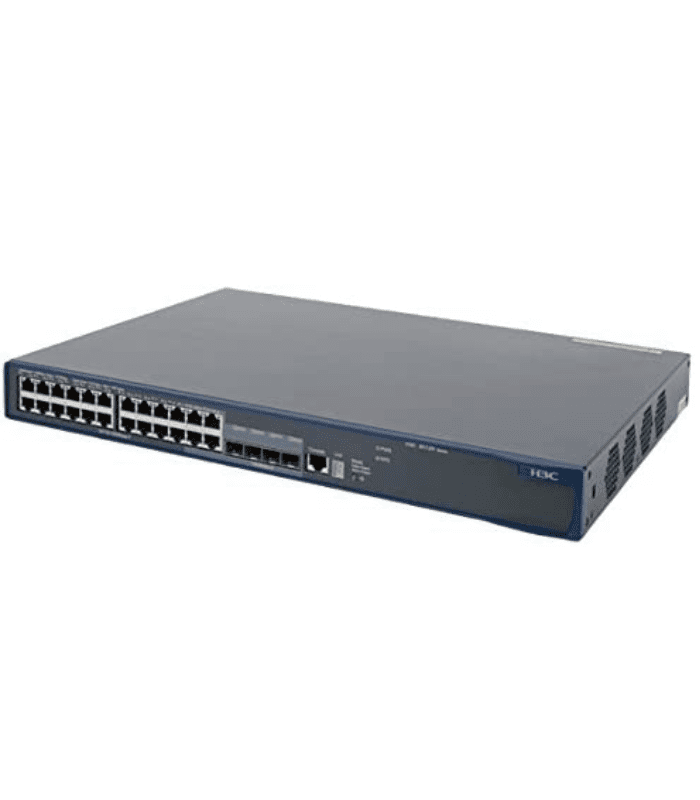

HP A5120 EI Switch Series (JG245A), Layer 3, Managed Gigabit Ethernet switch with 24 10/100/1000 BaseT ports (NEW)
In Stock
Highlight
- Provides Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in data centers.
- Offers high scalability with two expansion slots that can support two-port 10GbE expansion modules.
- Features Unique Intelligent Resilient Framework (IRF) technology for creating virtual fabrics by virtualizing multiple switches into a single logical device.
- Provides high availability, simplified management, and comprehensive security
